Circle Sample Cutter

It is suitable for sampling fabric, paper and other packaging material. The blade height is adjustable. It is matched with the electronic balance to calculate the unit gram weight of the sample.

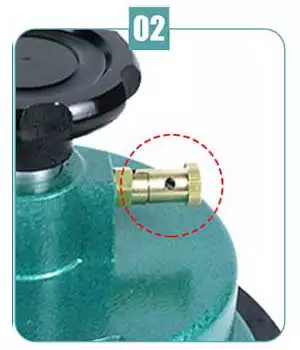

The copper protection bolt can protect the blade and prevent the user from injury.

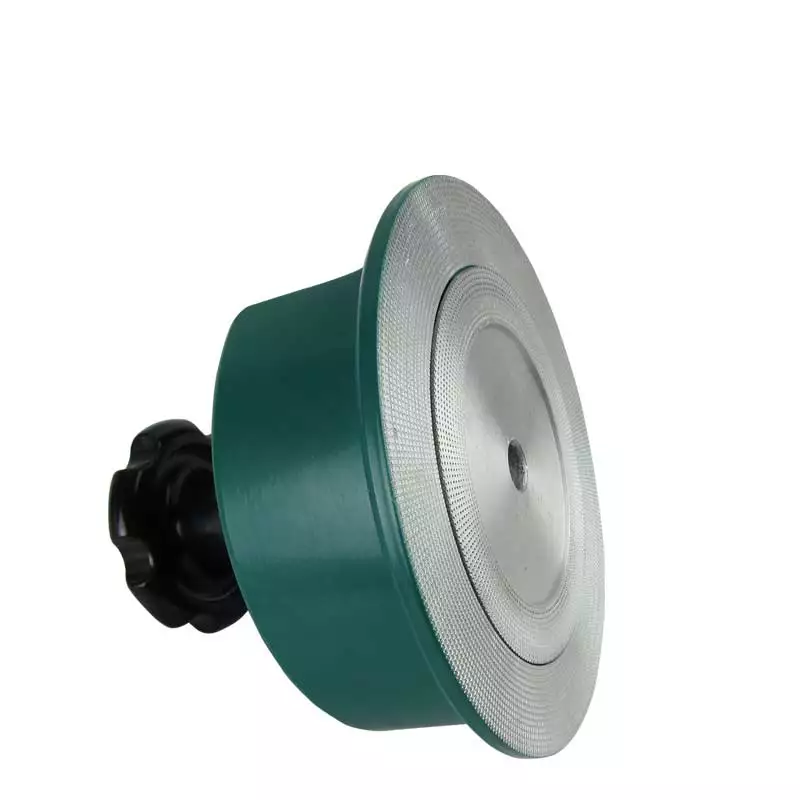

The anti-skid baseplate ensures that the sample does not walk and can protect hands.
Easy installation,double side blade,4 pcs already installed.
Good quality blades,long service life.

Main Technical Data:

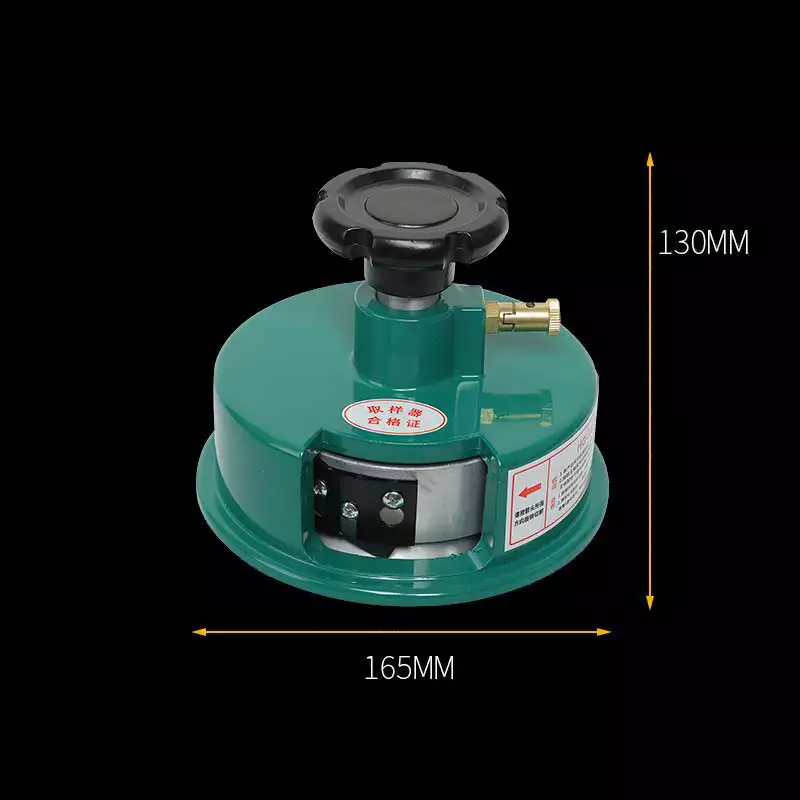

Diameter:16.5cm
Sample Diameter:11cm,Sample Area:100 cm2
Cut sample thickness:0-5mm
N.W:1.65KG.
Main material:Aluminium/Plastic handle/Copper bolt

User's Manual:

how to use circle Sample Cutter
how to use circle Sample Cutter
how to use circle Sample Cutter
how to use circle Sample Cutter

1.Place the sample between the leather pad and the sample cutter.
2.Pull out the protective bolt and rotate it 90 degrees to clamp the sample.
3.Press and hold the sampler handle and rotate the sampler for one turn.

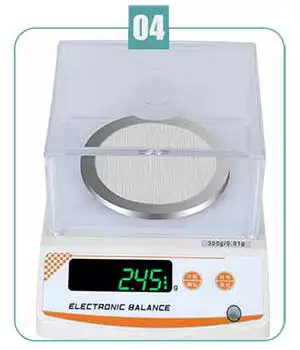

4.Put the sample onto the electronic balance, multiply by 100 ,it is just the sample Square gram weight.
