Lab Jack Stainless Steel

Lab Rack is designed for height adjustance and support in physical, chemical and biological experiments.Our lab jack has the advantages of  firm structure and stable lifting.
Panel material:Panel:Stainless steel+Zinc plated rack+Manual wheel control
Stainless steel has the advantage of very good resistance to corrosion.
Zinc Plated Rack design has very good reistance to corrosion and also makes the lab jack very stable when lifting up and down.

Size Details:

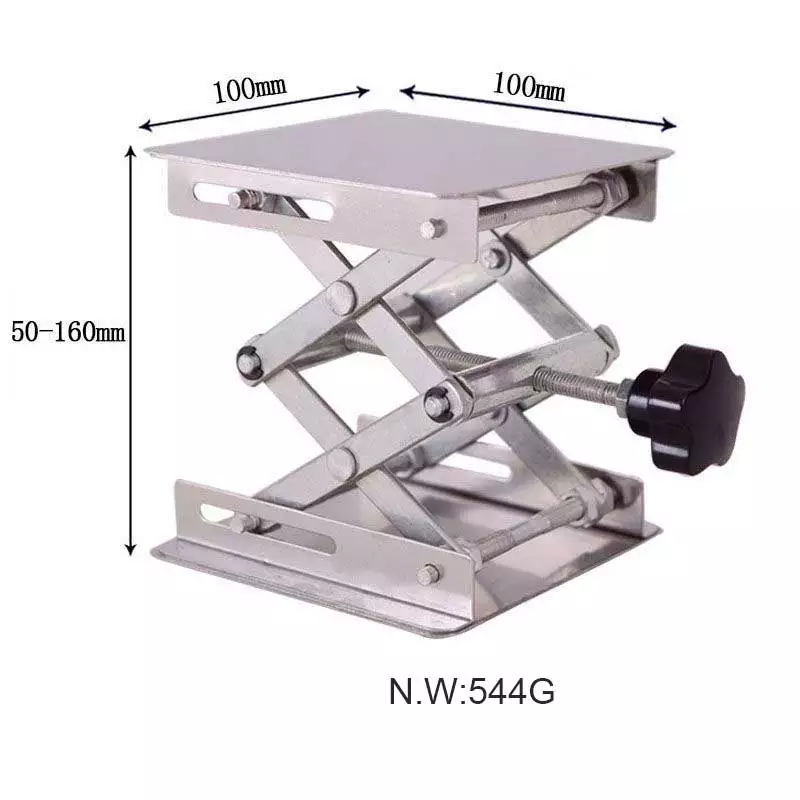

1.100mm*100mm:lifting range:50-160mm;capacity:5kg;upper and lower panel size:100*100mm,N.W: 544G;G.W:1KG

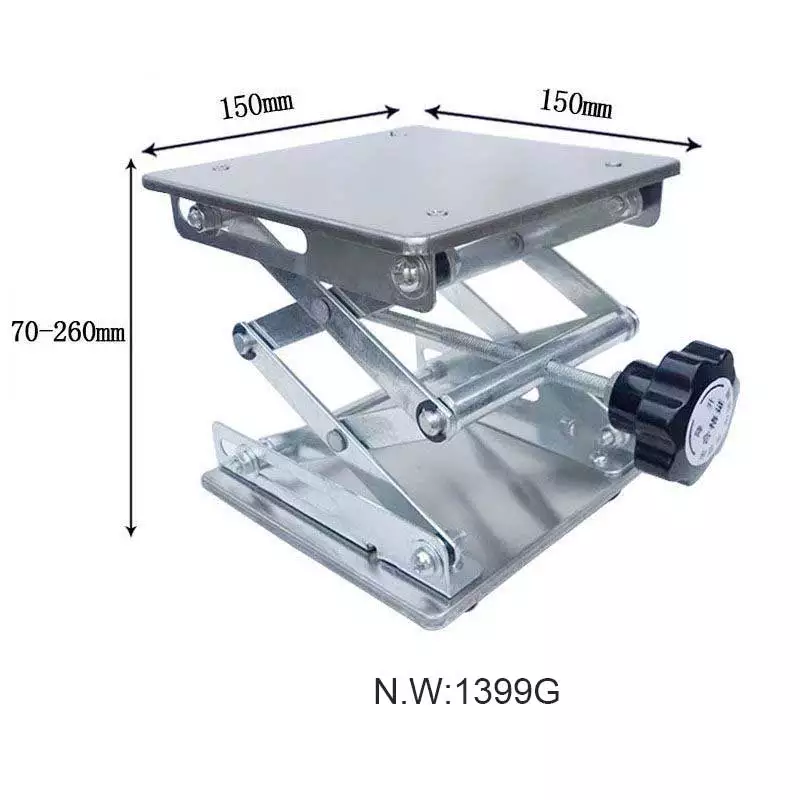

2.150mm*150mm:lifting range:70-260mm;capacity:10kg;upper and lower panel size:150*150mm,N.W:1399G；G.W:2.5KG

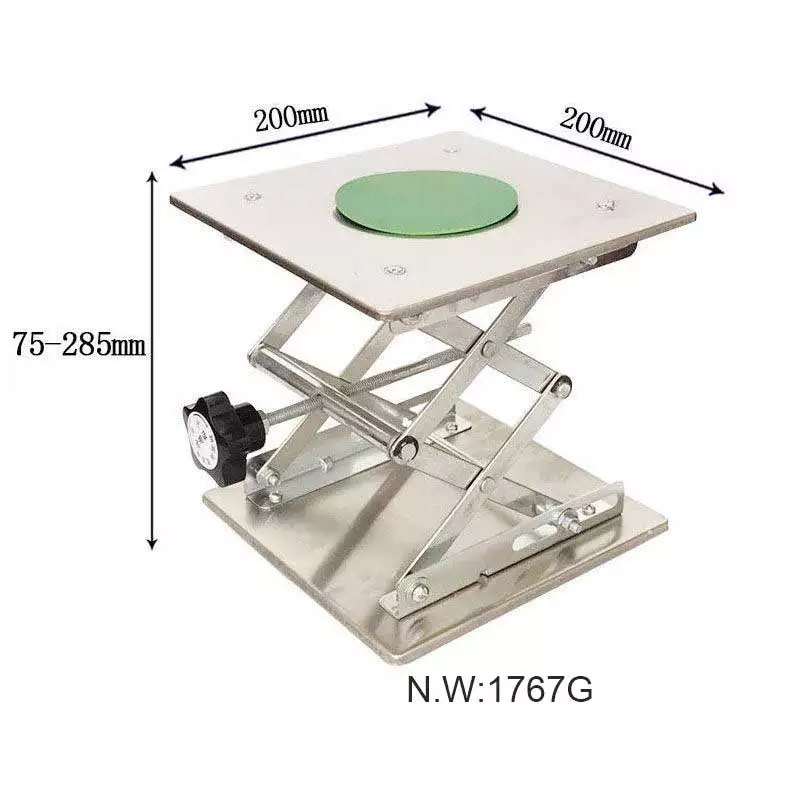

3.200mm*200mm:lifting range:75-285mm;capacity:15kg;upper and lower panel size:200*200mm,N.W:1767G；G.W:3KG

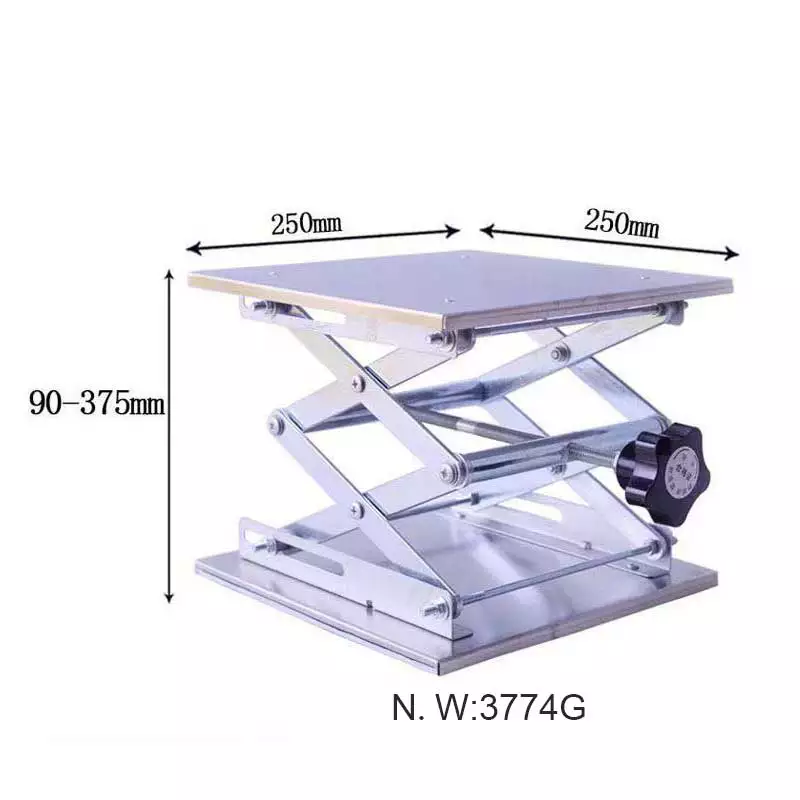

4.250mm*250mm:lifting range:90-375mm;capacity:20kg;upper and lower panel size:250*250mm,N.W:3774G；G.W:5KG
p.s:measured by hands, there may be 1-2mm error,please understand.

Use instruction:
Place the lab jack stably and rotate the hand wheel to the your destination height. Pay attention to cleaning after use, and place it in a cool and dry place to avoid corrosive gas.
Precautions for use:
When there are heavy liquid objects on the lab jack, please put the heavy object down first and then adjust the height to avoid liquid splashing.
