Stainless Steel Multifunctional Rabbit Restrainer Rack

Application:restrain rabbits in different positions while make rabbits in awake state to fulfill the needs of different kinds of scientific researches.

Material:Stainless Steel 304

Suitable rabbit weight:2-3KG

Main Technical Data:
Rack Restraining lifting range:165-255mm;
Angle of Elevation:0-30 deg
Angle of Depression:0-20 deg
Rabbit head holding adjustment range:0-70mm
Restraining rack width:160mm
Rack Stretched Height:200mm
Rack Stretched Length:500mm

The rabbit is one of the animals commonly used in physiology, pharmacology, toxicology experiments and education. It is commonly used in fever research, heat source test, immunology research, respiratory disease research, ophthalmology research, skin reaction test and so on. Due to the moderate size and gentle temperament of rabbits, they can be administered in multiple ways: oral, subcutaneous, spinal canal, vein, respiratory tract, rectum, skin, eyes, brain, etc. At the same time, blood, urine, gastric juice, etc.

Only blood collection can be divided into rabbit ear vein blood collection, middle ear artery blood collection, hind limb tibial subcutaneous vein blood collection, femoral vein blood collection Jugular vein blood collection and heart blood collection and other forms, so rabbits have important uses in medical research and experiments. However, it has always been a headache for the experimenters to fix the rabbit in a way suitable for a variety of experiments in a awake state. For example, drug gavage, tibial blood collection, body temperature measurement, urine export, skin experiment and so on are often completed by multiple people working together. Only by gavage, two people hold down the rabbit and one opens the mouth for intubation. Sometimes there are failures and scratches. Gavage for rabbits has become an arduous task. How to make these difficult tasks easier, this product successfully solved the problem of rabbit fixation in awake state, Deeply loved by experimenters, it solves the problems of rabbit stomach perfusion, blood collection, urinary catheterization, respiration, eye and skin experiments. It is an ideal experimental equipment.

Use Instructions:

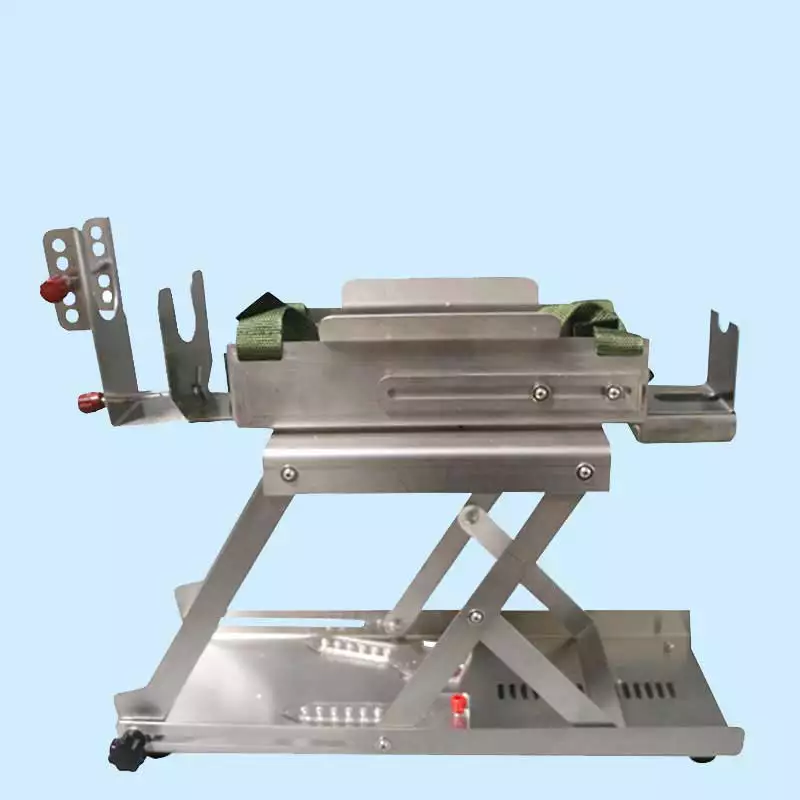

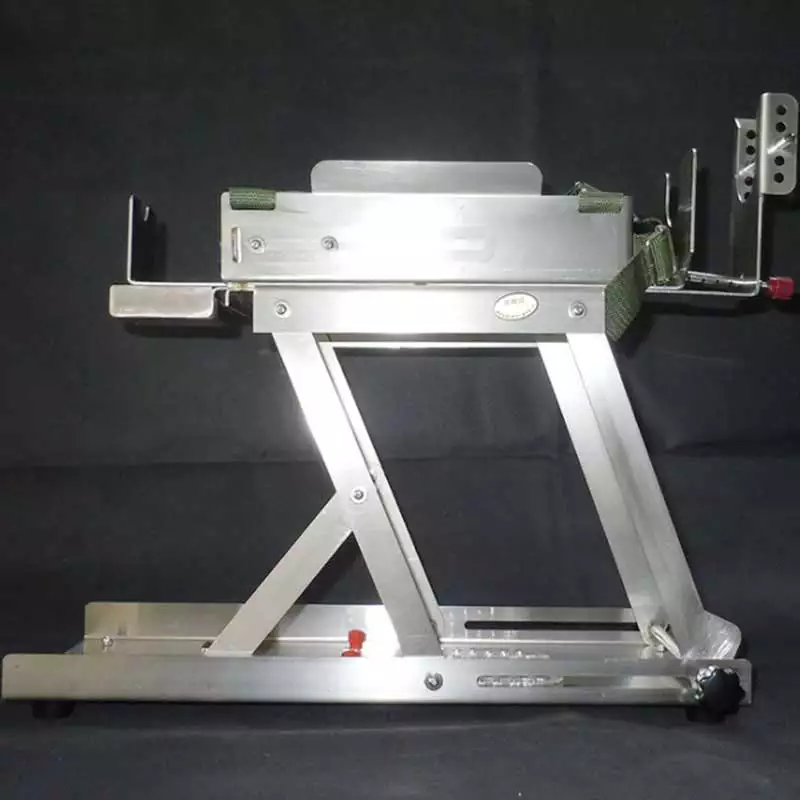

1. Assembly: after the package is opened, connect the rabbit restrainer with the lifting frame with four screws, then install the rabbit head fixing plate and dung receiving plate, and screw the elevation adjustment fastening screw and the screw on the rabbit neck adjustment rod. The assembly is completed (see our picture for reference).

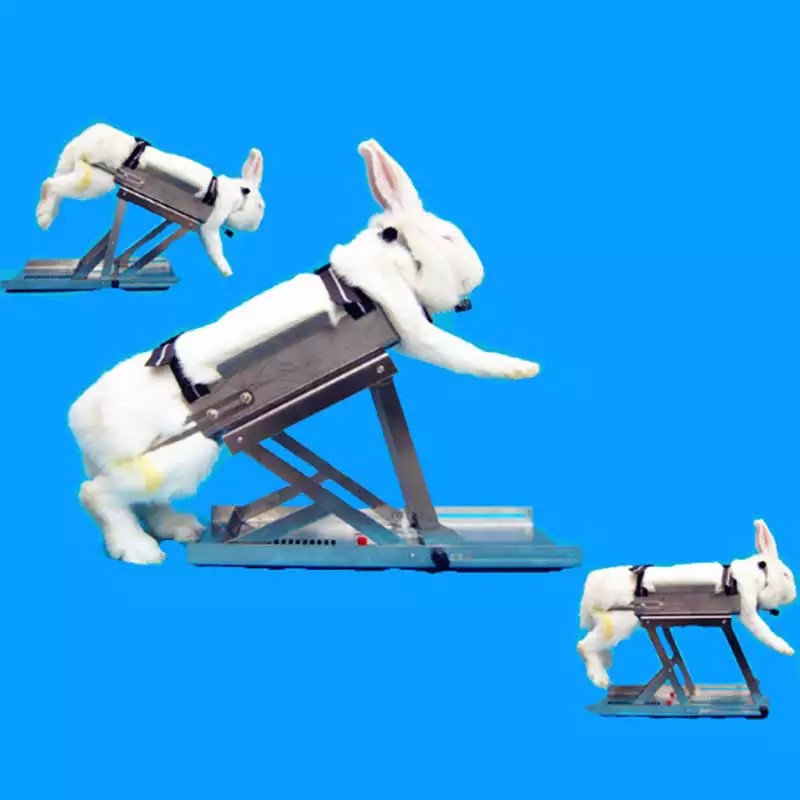

2. Fix the rabbit: place the height of the fixing frame to a low level, grasp the skin of the rabbit's neck and buttocks and lift it into the restrainer, the head is stuck on the rabbit head fixing plate, insert the locking shaft, tighten the front and rear fastening belt, pull out the buttocks limiting plate, then adjust the neck adjusting bar, so that the neck can be pulled to a suitable position.

3. Height adjustment: after the rabbit is fixed, lift the restrainer upward. After reaching the destination height, slide the positioning frame into the clamping slot to fix the height. If it is a bit lower,just lift the positioning frame to change the height and then clamp it.

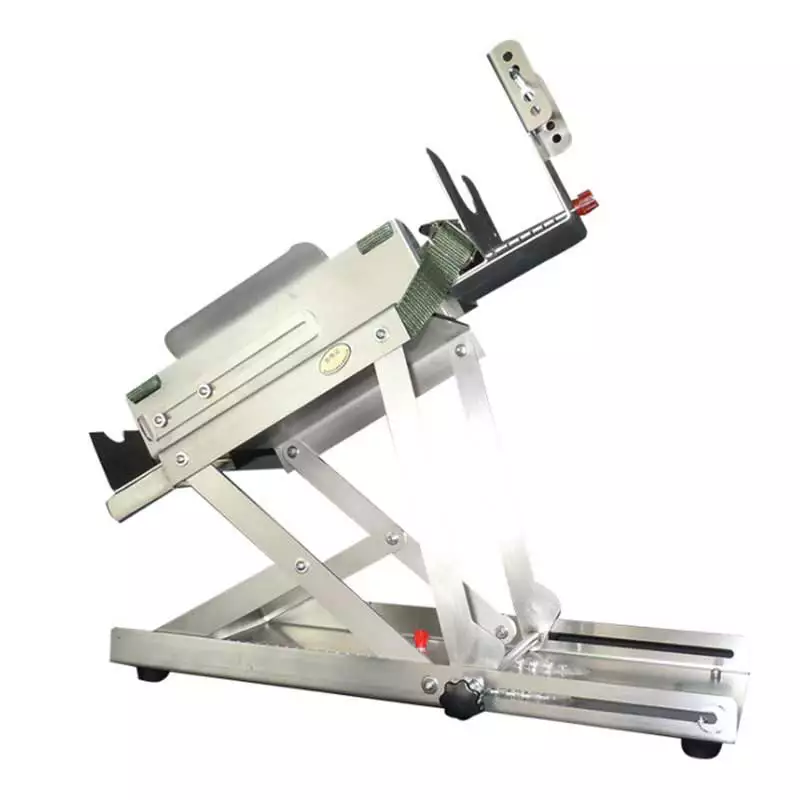

4. Elevation adjustment: loosen the fastening screw for elevation adjustment, push the upper front support backward along the chute, and tighten the screw when the appropriate angle is reached. Note: the more backward the support frame is, the greater the adjustment range of elevation angle, up to 30 °. Elevation angle is mainly used for gastric perfusion, oral and nasal observation, eye medication observation, etc.

5. Use of depression angle: loosen the elevation adjustment fastening screw and push it all the way back along the chute, lift the rear end of the fixing box and push it forward to make it appear depression angle. When it is pushed all the way, the depression angle is all the way to the end, up to 20 °. Depression angle is mainly used for body temperature measurement, rectal medication, catheterization, observation of reproductive organs, subcutaneous vein injection or blood collection of tibia of hind limb, etc.

6. Use of fecal tray: the rear fecal tray is a pull-out structure, which can be adjusted according to the actual situation of animals. Draw out and clean after use

7.How to use the mouse gag: the fixed frame is equipped with a rabbit mouse gag. When in use, the front end of the gag is inserted in parallel along the corner of the rabbit's mouth. After insertion, rotate it from top to bottom to open the rabbit's mouth, and press the rabbit's tongue for several more turns. Select the hole for inserting the gastric tube on the gag according to the actual position (the more the center is the better). Generally, there is no need to hold the gag after opening the rabbit's mouth, Individual rabbits chew themselves. Please pay attention.

P.S:

1. Please clean the constainer thoroughly after use, and keep in a dry place.

2. Please do not disassemble by the user himself.
