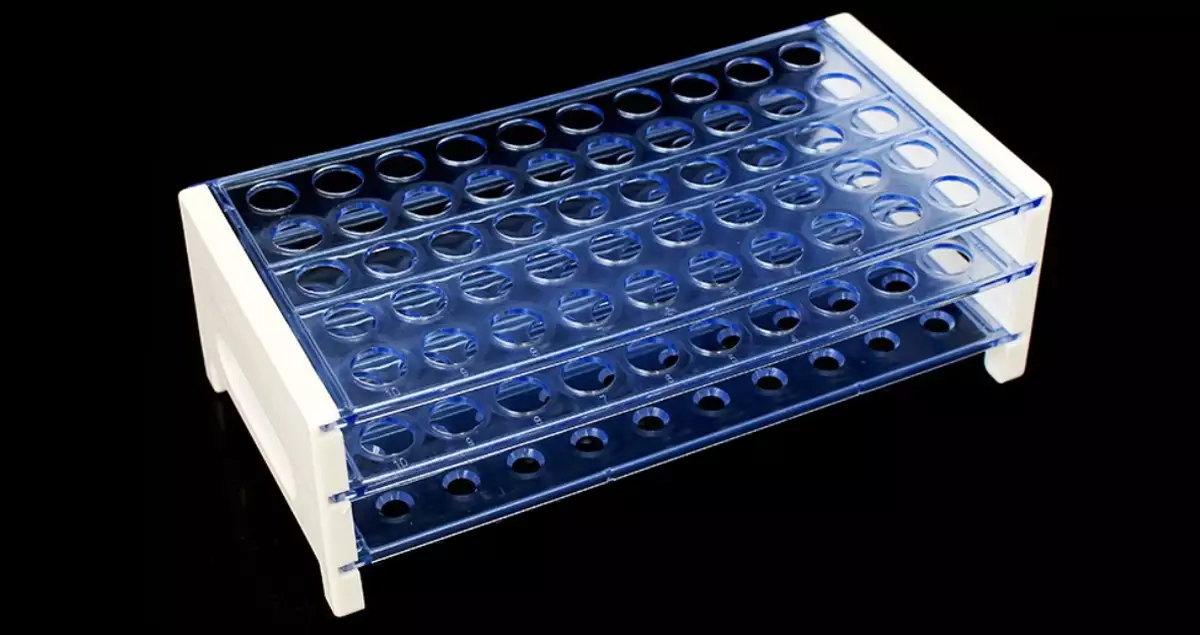

Removable Plastic Test Tube Racks 13mm 16mm 18mm Hole
Model: SGJ-1(13mm)/SGJ-2(16mm)/SGJ-3(18mm)
Size:13mm hole diameter,50 holes/16mm hole diameter,50 holes/18mm hole diameter,40 holes, three layers
Unique design: Each plastic rack layer can be removable, so easy to clean and pack.
Each row has precise numbers.
Size Details for this Test Tube Racks Plastic
| Model | Holes | length (cm) | Width (cm) | Height (cm) | Hole Diameter (mm) |
|---|---|---|---|---|---|
| SGJ-1(13mm) | 50 | 21.5 | 11 | 7 | 13 |
| SGJ-2(16mm) | 50 | 25.5 | 11 | 7 | 16. |
| SGJ-3(18mm) | 40 | 26.5 | 11 | 6.5 | 18 |
P.S: All the following parameters are measured by hand. There will be a bit different.
Packing Details:
It is straightforward to install the removable plastic test tube rack. We can install it when in use, and it can be removed and packed into a small bag if not used to save space.
How to install the removable plastic test tube rack?
1. After unpacking the test tube rack, we checked there were two white plastic plates and three blue plates.
2. For white plates, all the smooth sides are put outward, and all the arris sides are put inward. All the smooth sides are put down for blue plates, and all the arris sides are put up. Align the blue plates with the hole of the white plate and insert them in turn.
3. Finish, we can insert in test tubes or centrifuge tubes.
Application of this removable test tube rack:
For Model SGJ-1(13mm): Suitable for test tubes diameter under 13mm and 2ml, 5ml vacuum blood collection tubes.
For Model SGJ-2(16mm): Suitable for test tubes diameter under 16mm, it is also suitable for 10 ml vacuum blood collection tubes and 10 ml centrifuge tubes.
For Model SGJ-3(18mm): Suitable for test tubes diameter under 18 mm, also suitable for 15 ml centrifuge tubes.
