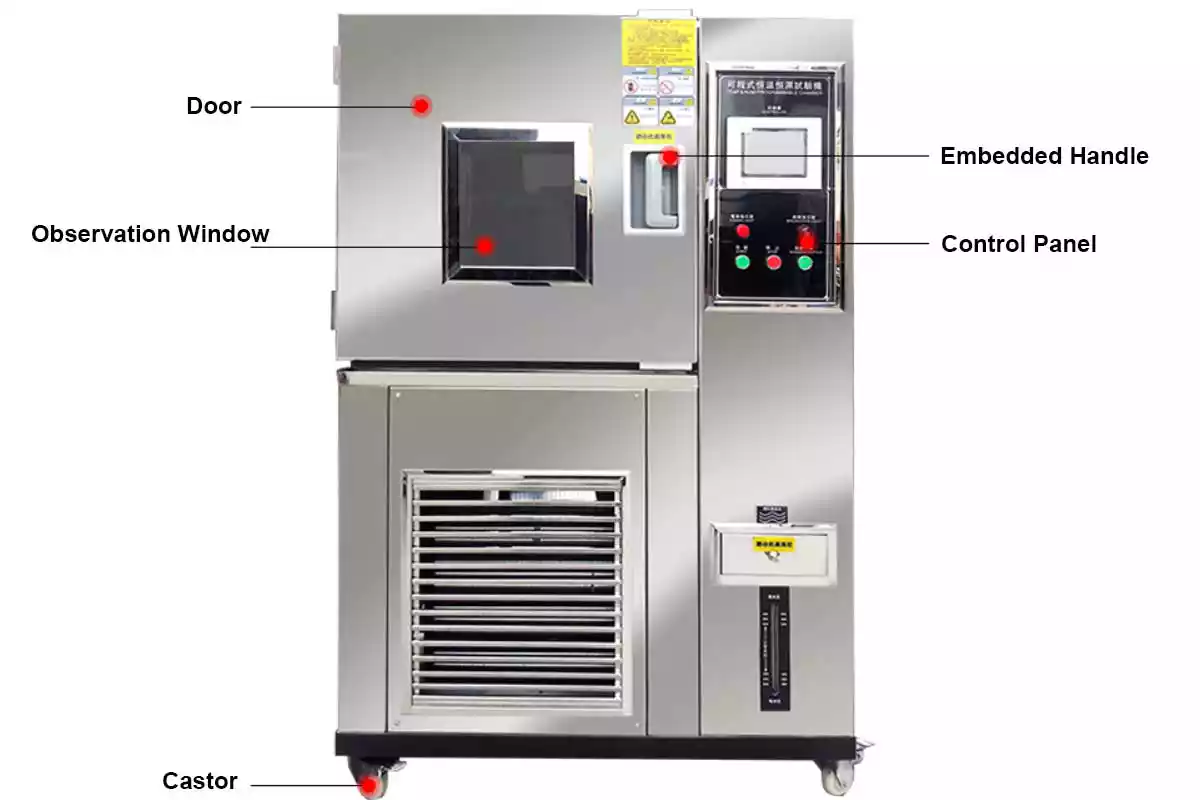

High-Low Temperature Chamber
Application: The high-low temperature chamber is applied to test the heat, cold, dry, and moisture resistance of materials under various high and low-temperature environments or high and low-temperature changing environments.
It is widely used in food, chemistry, building materials, medical treatment, aerospace, etc.
Product Feature of the High-Low Temperature Chamber:
(1). Over temperature protection.
(2). Heater short circuit protection.
(3). Humidifier short circuit protection.
(4). Fan overload protection.
(5). Leakage protection.
(6). Compressor overload protection.
(7). Compressor overpressure protection.
(8). Water shortage protection.
2. 100*10 multi-segment programming operation, the machine can simulate different temperature and humidity environments.
3. All our parts adopt brand parts.
4. Low Noise.
Main Technical Data of the High-Low Temperature Chamber:
| Model | GDW - 80L | GDW - 150L | GDW - 225L | GDW - 408L | GDW - 800L | GDW - 1000L |
|---|---|---|---|---|---|---|
| Working Chamber Size (cm): | 40 * 50 * 40 | 50 * 60 * 50 | 60 * 75 * 50 | 60 * 85 * 80 | 100 * 100 * 80 | 100 * 100 * 100 |
| Overall Dimension (cm): | 120 * 165 * 115 | 130 * 170 * 125 | 140 * 185 * 130 | 165 * 195 * 155 | 185 * 200 * 175 | 190 * 210 * 185 |
| Temperature Range: | A:-20 - 150 ℃; B:-40 -150 ℃; C: -60 - 150 ℃; D: -70 - 150 ℃(the user can choose A/B/C/D range.) | |||||
| Humidity Range: | 20%-98% R.H(optional 5%-98%) | |||||
| Temperature and Humidity Distribution Accuracy: | 0.1 ℃ 0.1% R.H / ±2.0℃ ±3.0 %R.H | |||||
| Temperature Rise and Fall Time: | Temperature rises about 4 ℃/min; falls about 1 ℃/min | |||||
| Temperature and Humidity Control Accuracy: | ±0.5℃ ±2.5%R.H. | |||||
| Exterior Materials: | SS 304 / plated cold rolled steel | |||||
| Thermal Insulation Material: | High-temperature resistant and high-density chloromethyl ethyl acetate foam | |||||
| Power Supply | 220V 50/60Hz | 380V 50/60Hz | ||||
| Weight (KG) | 150 | 180 | 250 | 350 | 500 | 520 |
Standard configuration: High-Low Temperature Chamber * 1, User's manual*1, Sample rack*2.
Also, accept customized sizes and technical data. Please feel free to ask us.
