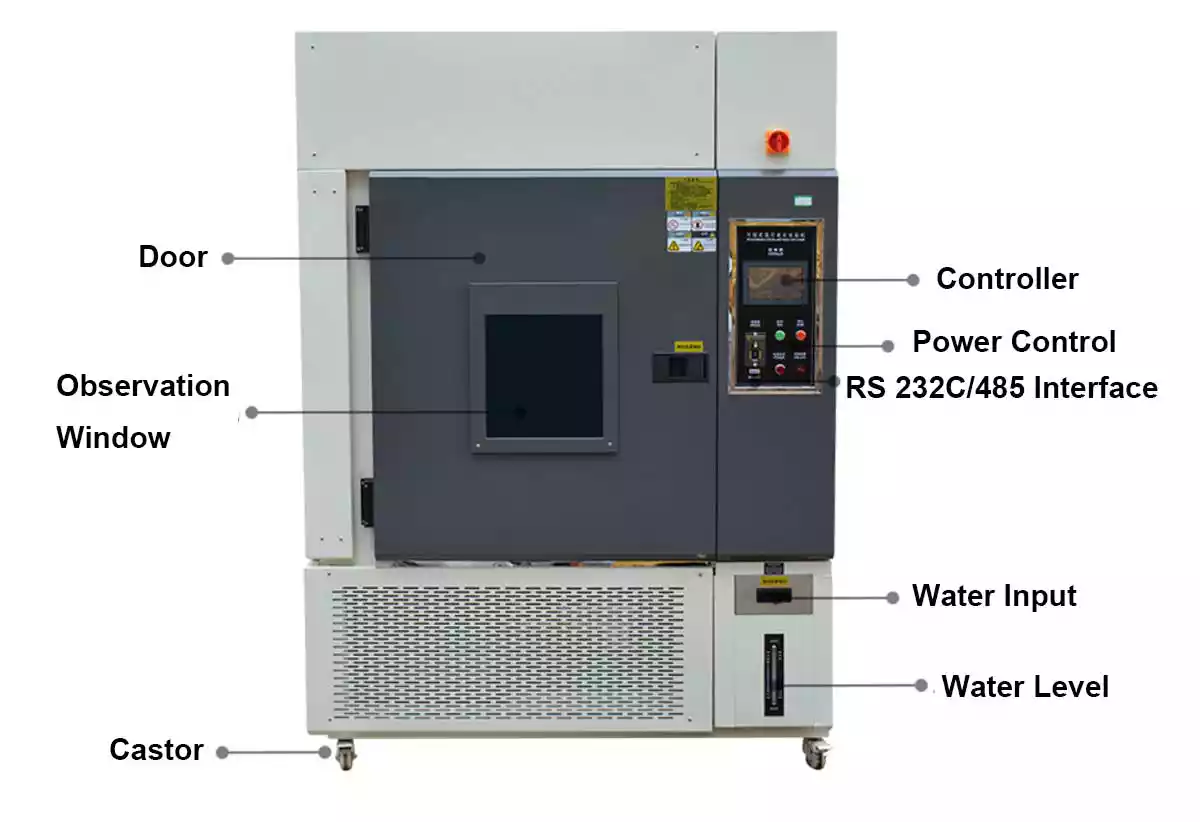

Xenon Aging Test Chamber(150L 225L 408L and Customized Sizes)
The Xenon Aging Test Chamber adopts water/wind cold xenon light. It can simulate the destructive light wave formed by full sunlight. It can also accurately simulate the natural environment, such as rain and dew, to provide sunshine and climate resistance tests for the samples.
Mainly applied for automobiles, coating, rubber, plastic, pigment, adhesive, fabric, etc.
Main Technical Data of the Xenon Aging Test Chamber:
| Model | XDX - 150L | XDX - 225L | XDX - 408L |
|---|---|---|---|
| Working Chamber Size (mm) | 500 * 500 * 600 | 500 * 600 * 750 | 600 * 800 * 850 |
| Temperature Control Range: | 10℃-80℃ (with both refrigeration and heating function) | ||
| Humidity Range: | 65%-98% R.H | ||
| Black Board Temperature: | 63℃, 100℃ (±3℃) | ||
| Xenon Light: | Wind cold light source | ||
| Rain Simulation Time: | 1-9999 min | ||
| Spray Diameter: | 0.8 mm | ||
| Wave Length: | 295nm-800nm, 100W-800W/m2 adjustable. | ||
Product Features of the Xenon Aging Test Chamber:

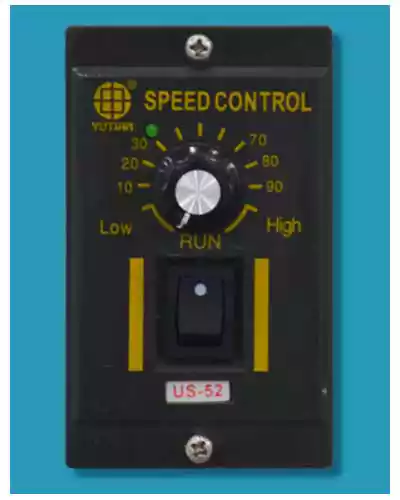

We can adjust the rotating speed of the sample rack.

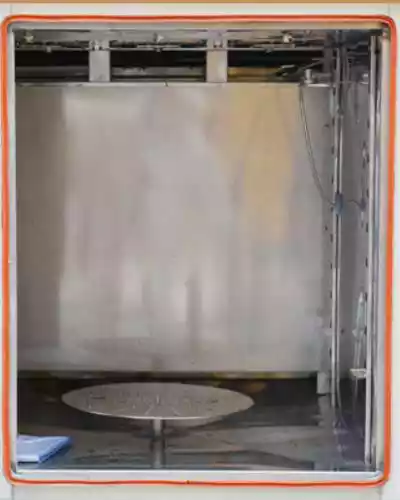

Inner mirror SUS 304, good corrosion resistance.

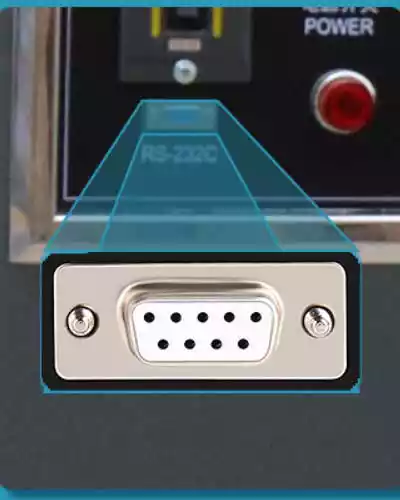

RS 232/485 interface, the user can download all the data.

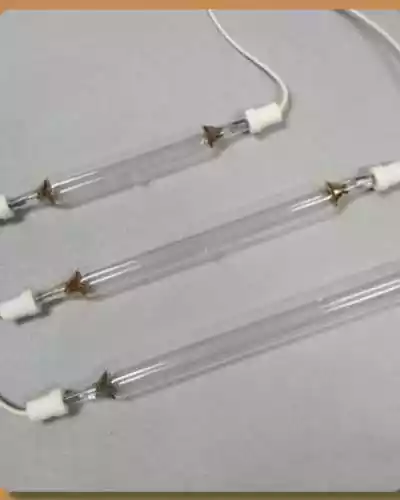

It is equipped with 4.5KW xenon light to simulate full sunlight.
Also, accept customized sizes.
