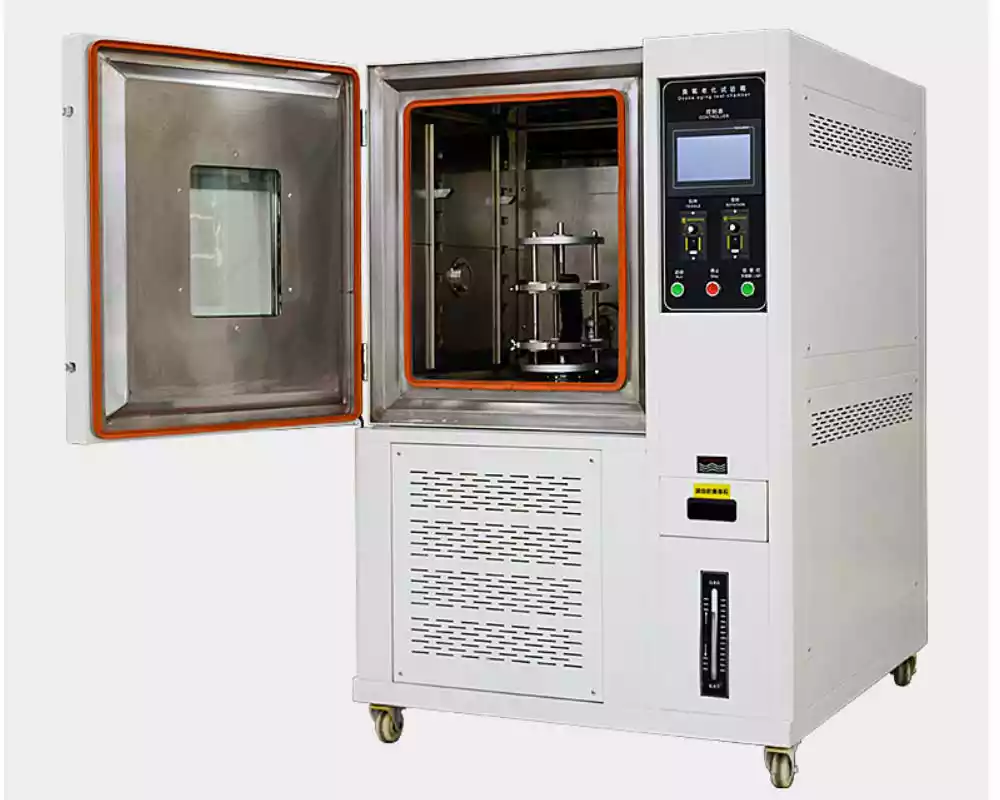

Ozone Aging Test Chamber
An ozone aging test chamber can be applied for rubber products, such as vulcanized rubber, thermoplastic rubber, and cable insulation sheath. The testing samples are exposed to the air with constant ozone concentration, temperature without light, and under static tensile deformation according to the predetermined time. We can evaluate their anti-ozone aging performance by testing the surface's cracking and other performances.
Main Technical Data of the ozone aging test chamber:
Working Chamber Size: 600*800*600mm
Inner Working Chamber Material: SUS 304
Power:5000W
Power Supply:220V
We can control the ozone concentration, temperature, and humidity with the control panel.
Ozone Concentration:10-1000PPhm
Ozone Concentration Deviation:<=10%
Working Chamber Temperature Range: Rm temp-+80 ℃
Temperature Uniformity: ±2 ℃
Temperature Fluctuation: 0.5 ℃
Test Chamber Humidity: 65%R.H
Sample Rotating Speed: 20-25 mm/s
Inner Chamber Gas Flow Rate: 8-16mm/s
There are two kinds of testing methods for choice:

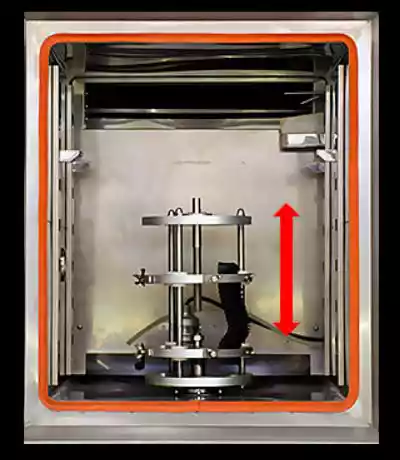

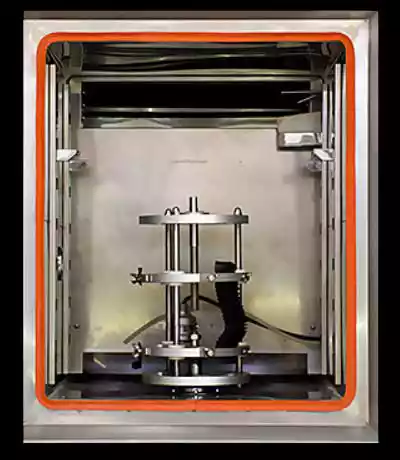

1. Static Test: after we stretched the samples, put them into the test chamber for the test. 2. Dynamic Test: place the sample on the fixture, simulate the natural tensile environment, and test while stretching.
Product Features of the Ozone Aging Test Chamber:

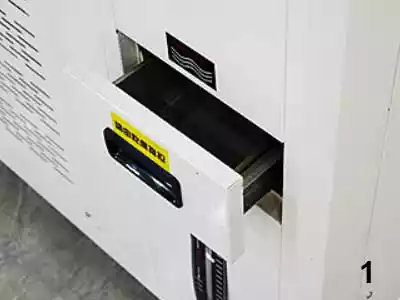

1. Hidden water tank design.

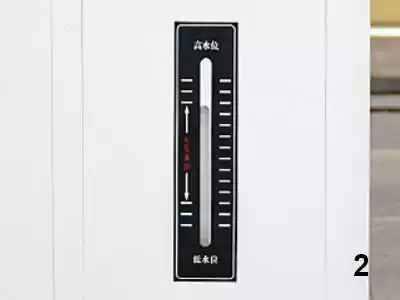

2. We can observe the water level at any time.

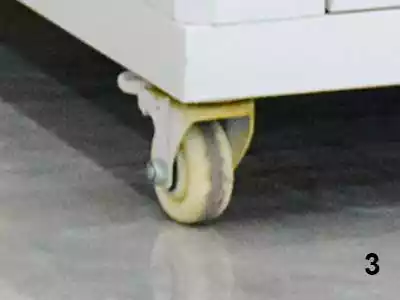

3. Universal wheel with brake.

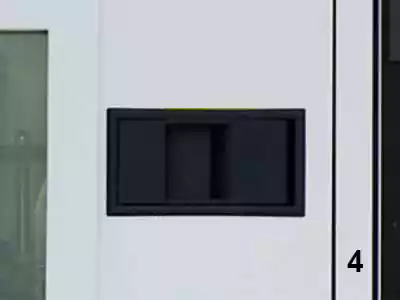

4. Hidden Knob

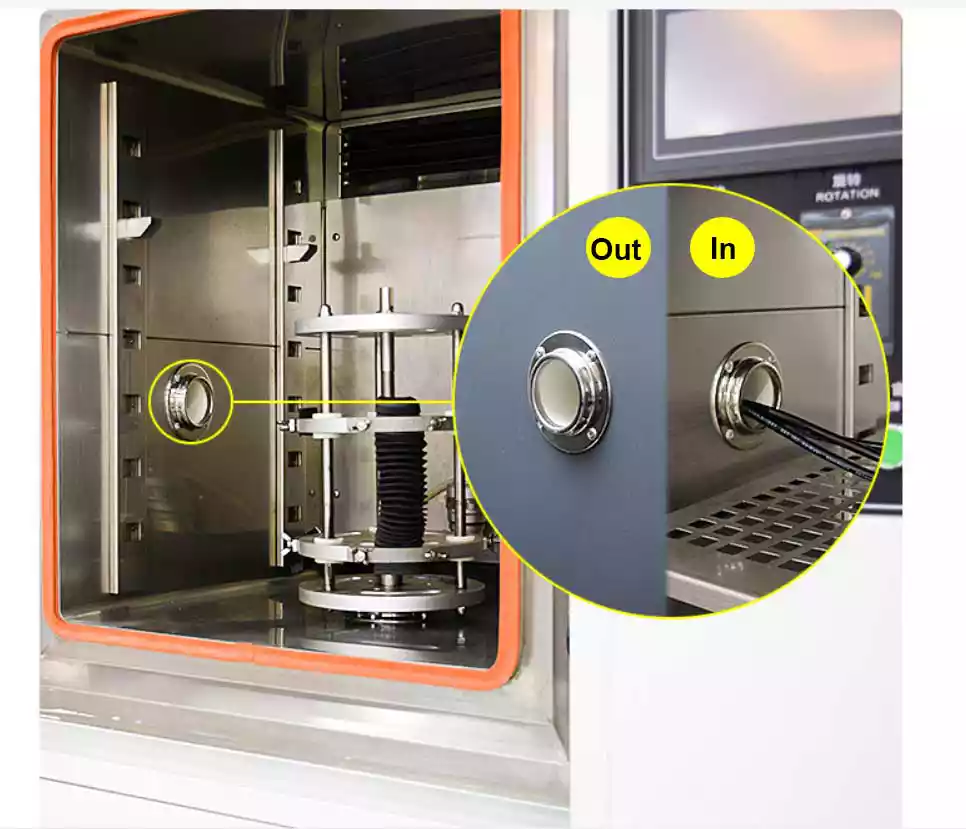

5. The power on the test port is designed to facilitate various power-on tests.
We also accept customized sizes and technical data, so don't hesitate to contact us.
Related Knowledge:
What is an ozone aging test?
Ozone has very little content in the atmosphere, but it is the main factor of rubber cracking. The ozone aging test adopts an ozone aging test chamber to simulate and strengthen ozone conditions in the atmosphere. The test can study the action law of ozone on rubber, quickly identify and evaluate the anti-ozone aging performance of rubber or the effect of anti ozone agent, and then take effective anti-aging measures to improve the service life of rubber products.
