Rain Test Chamber
The rain test chamber can simulate the natural rain environment and carry out the waterproof test on electrical, electronic, automobile, motorcycle accessories, or other samples.
Main Technical Data for the rain test chamber:
The spray hole diameter of the swing pipe: 0.4 mm
Spray hole interval: 50 mm
Spray ring radius: 275 mm
Spray pipe diameter: 16 mm
Swing pipe angle: ±45° ±60° ±90° ±170° adjustable.
Swing pipe spray angle: ±60° ±90°
Swing adjustable speed: 0-30 rpm
Rain pressure: 0.1-6 Pa adjustable.
Water supply: 1-7 L / min adjustable.
Test worktable rotating speed: 0-20 rpm(adjustable)
Test worktable size: 400mm, load capacity 15 KG, sample rack 0-300 mm adjustable.
Test hole: with a testing hole, it can be tested by the external power supply
Working chamber material: SUS 304. The spray pipe is also made of SUS 304 material. Other parts that will contact water are either stainless steel or copper.
| Standard | IP x 1.2 | IP x 3.4 | IP x 5.6 | IP x 1.2.3.4 | IP x 3.4.5.6 | IP x 6K | IP x 9K |
|---|---|---|---|---|---|---|---|
| Working Chamber (cm) | 60 * 60 * 60 | 60 * 60 * 60 | 60 * 60 * 60 | 60 * 60 * 60 | 60 * 60 * 60 | 60 * 60 * 60 | 60 * 60 * 60 |
| Working Chamber (cm) | 80 * 80 * 80 | 80 * 80 * 80 | 80 * 80 * 80 | 80 * 80 * 80 | 80 * 80 * 80 | 80 * 80 * 80 | 80 * 80 * 80 |
| Working Chamber (cm) | 100 * 100 * 100 | 100 * 100 * 100 | 100 * 100 * 100 | 100 * 100 * 100 | 100 * 100 * 100 | 100 * 100 * 100 | 100 * 100 * 100 |
Product Details of the Rain Test Chamber:
1. The worktable is 400 mm and can be rotated 360°.

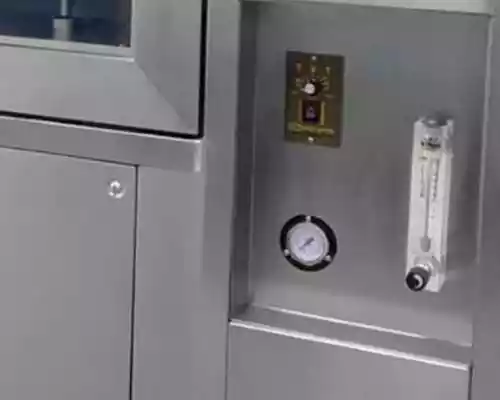

2. Appearance flow meter is efficient and stable.
3. The inner material is mirror SUS 304 with round corners.
4. Reasonable handle design, good tightness.
Also, accept customized sizes and specifications.
What is a rain test?
The rain test is the test of the performance of waterproof and water resistance of the sample material by artificial simulation of a natural rain environment.
