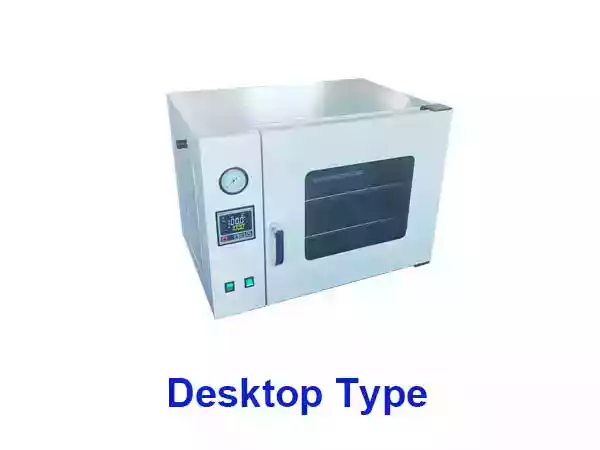

Vacuum Drying Oven
Vacuum drying ovens have the following advantages over ordinary drying ovens:
(1) Vacuum drying environment dramatically reduces the boiling point of an expelled liquid so that vacuum drying can be easily applied to heat-sensitive substances.
(2) For samples that are not easy to dry, such as powder or granular items, vacuum drying can shorten the drying time.
(3) All mechanical components with complex structures or other porous samples are cleaned and vacuum-dried, leaving no residue after complete drying.
(4)It is safer and eliminates the possibility of oxide preheating explosion under vacuum or inert conditions.
All our products are carefully tested before leaving the factory:
Details of the Vacuum Drying Oven:
Product Features of the Vacuum Drying Oven:
1. PID control, accurate temperature control.
2. Double layer bulletproof toughened glass design, we can assure not only good tightness of the inner chamber but also good light transmittance. The inner chamber can be observed clearly. The inner chamber can also be filled with inert gas.
3. LED display.
4. All the heating, testing, and drying are done under an atmosphere of no oxygen or inert gas, so it will not cause any oxidation.
5. Independent vacuum function: the user can turn off the switch or use this vacuum oven as an ordinary oven and turn on the switch to use it as a standard vacuum drying oven.
Professional manufacturer always pay more attentions at details:

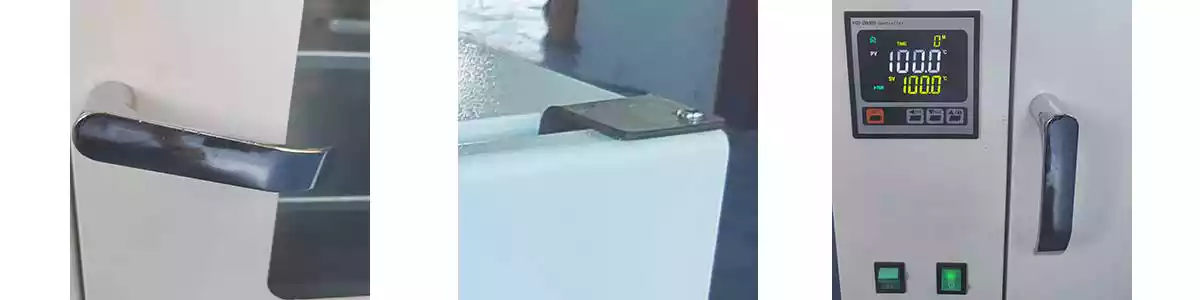

*Adopt SUS 304 material door handle and hinge to ensure that the vacuum state remains after rather long use.
*Individual Vacuum pump switch makes the user easy to choose a vacuum state or a non-vacuum state.
Optional parts for vacuum oven:
1. Intelligent controller/Intelligent vacuum gauge
2. Inert gas inlet valve
3. Inner cabinet
4. Vacuum Pump
Main Technical Data of the Vacuum Drying Oven:
Power supply: 220V;
Timing: 1-9999min;
Temperature control range: RT+10-250℃
Temperature resolution: ± 0.1℃
Temperature Fluctuation: ± 1℃
Vacuum < =133Pa
| Model | Working Chamber Size (mm) | Power (W) | Overall Size (mm) | Volume (L) | Inner shelves (pcs) |
|---|---|---|---|---|---|
| MZK-6020 Inner material Cold rolled steel, sprayed | 300 *300 *275 | 450 | 615 *470 *470 | 20 | 1 pcs |
| MZK-6050 SUS 304 Inner | 415 *370 *345 | 650 | 830 *640 *540 | 50 | 2 pcs |
PS: The vacuum pump is not included for model MZK-6020/MZK-6050.(Desk Top),the user will have to configure a vacuum pump himself, but for model MZK-6090/MZK-6210/MZK-500, no need for the user to configure the pump because the pump is built in.
Click here to view our vertical-type vacuum drying oven.
*All Our Vacuum Drying Ovens accept customized sizes; even if our customers only order one pcs, we have a professional engineering team to help to design. Please feel free to ask us!
